Adapter Harnesses for Caterpillar Engine Swaps: The Smart, Cost-Effective Solution for J1587 Trucks

When a full engine-to-cab harness replacement isn’t necessary — and when it absolutely won’t work

At Kustom Truck Parts, we help truck owners and shops complete reliable engine conversions every week. One of the most common questions we get is: “Can I just use an adapter harness instead of replacing the whole thing?”

The short answer is yes — but only in very specific situations. Adapter harnesses are a targeted, plug-and-play bridge that lets you swap one Caterpillar engine for another while utilizing the existing engine-to-cab wiring. They shine in the right applications and save serious time and money.

When Can You Use an Adapter Harness? (Truck Compatibility)

Adapter harnesses are only compatible with trucks that run either a completely analog dash or a basic smart dash with J1587 gauges but still analog switches. These are typically:

• Peterbilt and Kenworth: 2005 and older models with hardwired, non-multiplexed gauges and switches.
• Western Star:  All models up thru 2010 (glider trucks up thru 2020)
• Other brands (Freightliner, International, Volvo etc.): Any truck whose cab electronics are completely analog or communicate on the older J1587 protocol instead of full J1939 data.

Key rule: If your truck has a J1939 driven “smart” dash — any J1939 multiplexed gauges, multiplex switches, or a cab that requires J1939 data — an adapter harness will not work. You’ll need a complete replacement engine-to-cab harness (that typically includes our Data Management Processor) to make everything communicate properly.

Example: A customer with a 2006 Peterbilt 379 (J1939/NAMUX1) replacing a C15 ACERT with a 3406E 40-pin will need a full harness solution like our Peterbilt NAMUX1 Harness – CAT ADEM2 40-Pin with Processor.

In short: Analog or J1587 dash = adapter harness possible. J1939 smart dash = full harness required with Data Processor.

What Engines Do Adapter Harnesses Work With?

We currently offer a full line of Caterpillar-to-Caterpillar adapter harnesses. These are designed for intra-family swaps only — moving between different CAT engine platforms that share similar electronic families.

Popular examples include:

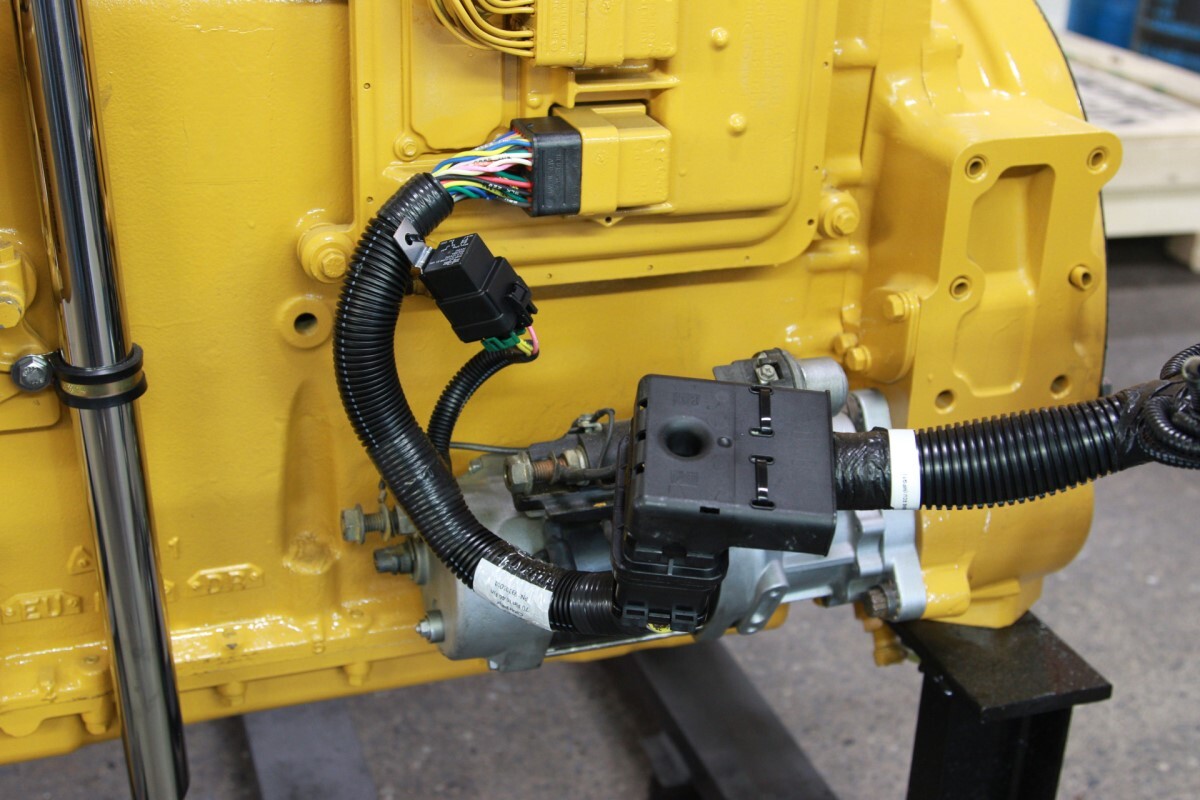

• Swapping a CAT 40-pin ADEM2 3406E in place of a C15 MXS ACERT (or the reverse) using our 40-Pin to 70-Pin Adapter Harness or 70-Pin to 40-Pin Adapter Harness.

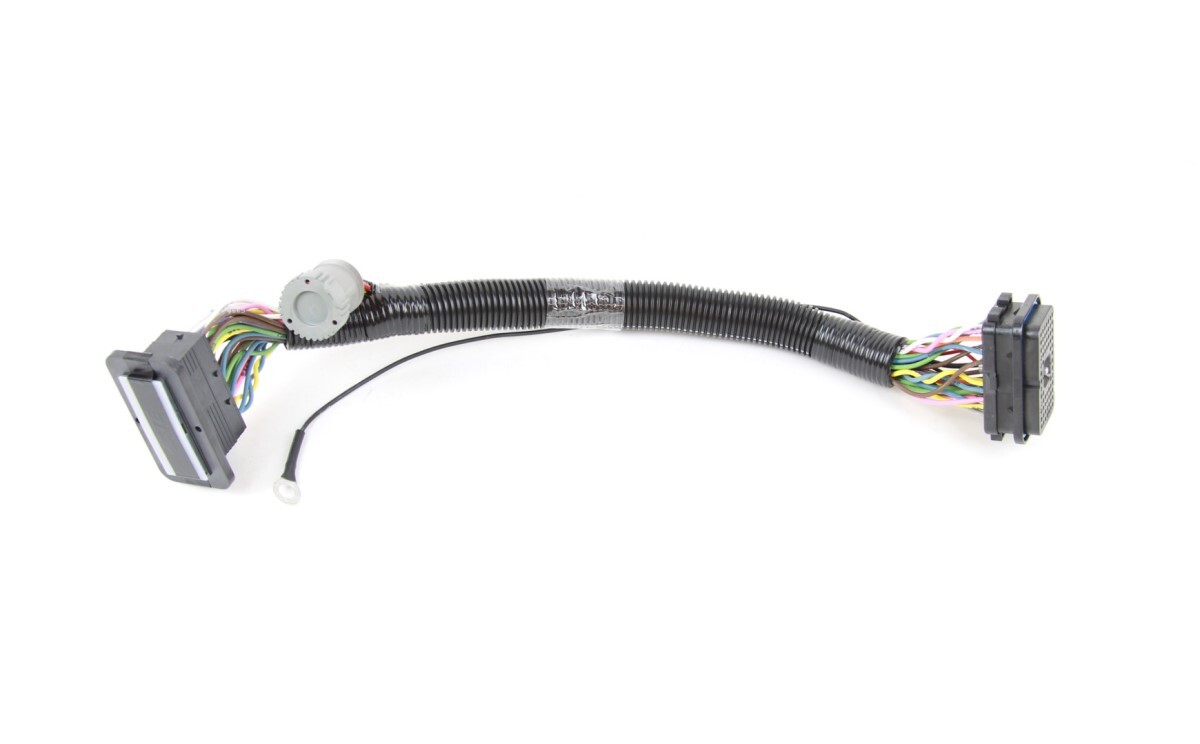

• Converting older PEEC engines to modern ADEM platforms with our PEEC to 70-Pin Adapter Harness.
• Moving between 40-pin and 70-pin connectors on ADEM2 / ADEM3 engines.

These adapters plug directly between your existing engine-to-cab harness and the ECM on the new Caterpillar engine. After installation, simply use CAT ET service software to verify and adjust ECM parameters to match up to the new chassis being installed into. Gauges, switches, and diagnostics return to full functionality with no major rewiring.

Why We Don’t Offer Cross-Brand Adapter Harnesses (Cummins ↔ CAT ↔ Detroit)

This is the part that surprises a lot of people. Even if your truck is completely analog or running J1587, you cannot take an existing Cummins or Detroit engine-to-cab harness and simply add a CAT adapter harness (or vice versa). Here’s why it doesn’t work:

1. Physical Connector Availability
   They do not make the mating male/female connectors for the Cummins and Detroit engine ECMs that would allow a simple plug-in adapter to interface with the existing engine-to-cab harness. These connectors simply aren’t available.
2. Different Circuit Designs
   Engine manufacturers handle critical engine functions differently. Sensor and switch logic, voltage levels, signal types (ground vs power), and pin assignments differ significantly between engine brands. For example: CAT uses a 3 wire throttle sensor with an 8 volt supply whereas Cummins requires a 6 wire throttle sensor with a 5 volt supply.
3. Operational Philosophy
   CAT, Cummins, and Detroit were never designed to share the same cab harness ecosystem. Trying to force compatibility often leads to fault codes, limp mode, non-functional features, and reliability problems.

That’s why we focus on complete, brand-specific engine harnesses when crossing families. It’s the only way to deliver a complete, clean, reliable, and long-term solution.

When to Choose an Adapter Harness vs. Full Replacement

Choose an adapter harness when:

• You’re doing a CAT-to-CAT swap in a fully analog or J1587 truck.
• You want to keep costs down and minimize wiring changes.
• Your existing harness is in good re-usable shape.

Choose a full engine harness when:

• Crossing engine brands (CAT ↔ Cummins ↔ Detroit).
• Your truck has a J1939 smart dash.
• You’re starting from a donor truck or doing a complete repower.
• Your existing harness is questionable and you want maximum reliability and future-proofing.

Ready to Swap?

Our adapter harnesses are in stock and ready to ship. Each one is built for plug-and-play installation and backed by our expertise in heavy-duty conversions.

Need help picking the right one for your exact engines? Send us the year/make/model of your truck, the original engine, and the replacement engine. We’ll give you a complete recommendation — often with links to everything you need.

Drive happy, drive reliable.

The Kustom Truck Parts Team
