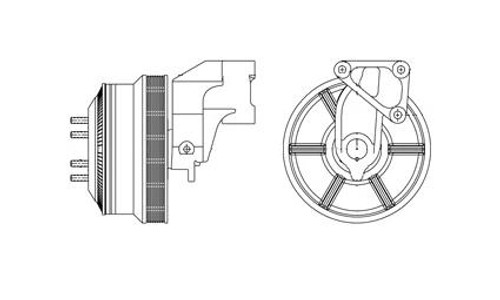

Horton Advantage On/Off Fan Hub – 8-Groove for Cummins M11 / ISM Engines – 12" Fan Center Height.
This Horton Advantage On/Off fan hub is designed for Peterbilt 365, 367, 386, 567, 579 and Kenworth T600, T660, T680, T800, T880 trucks equipped with Cummins M11 or ISM engines using an 8-groove main drive belt. It achieves a 12.00" fan center height (measured from the center of the crankshaft to the center of the fan hub) when using the appropriate front engine mount for the specific truck model.
Kit Includes:
- (1) Horton Advantage On/Off Fan Hub
Compatibility:
- Peterbilt 365, 367, 386, 567, 579
- Kenworth T600, T660, T680, T800, T880
- Cummins M11 and ISM engines with 8-groove main drive belt
Important Notes:
- The 12" fan center height is achieved with the appropriate front engine mount installed for the specific make and model of truck the Cummins engine is being installed into.
- On/Off configuration reduces unnecessary engine load and wear when cooling demand is low.
- Contact Kustom Truck to confirm compatibility with your specific engine, chassis, and fan mounting configuration.
Key Specifications:
- Fan Center Height: 12.00" (crankshaft center to fan hub center)
- Back Pulley Diameter: 7.51"
- Overall Length: 10.67"
- Bolt Circle: 3.5"
- Pilot Diameter: 2.56"
- Vertical Mounting Distance: 2.76"
- Horizontal Mounting Distance: 3.58"
- On/Off configuration
